SUCTION APPARATUS
7A-23B HIGH-POWER ELECTRIC SUCTION APPARATUS (40 LPM)
A high-capacity, high-power suction machine for general surgical use. The 7A-23B (High-Power) features an oil-free, maintenance-free suction pump with 40 LPM capacity. Maximum negative pressure can be conveniently controlled from the regulator on the front panel. The durable, aesthetically designed body features a storage compartment at the back and is made from powder-coated metal and plastic. It comes with 2 glass jars, a foot-switch, a tubing kit and spare bacterial filters.
Technical Specifications:
Input Power : AC 220 V @ 50 Hz, 180 VA
Pumping Capacity : 40 LPM
Maximum Negative Pressure : 90 kPa
Operating Noise : < 65 dB
Jar Capacity : 2.5 L X 2
7A-23B ELECTRIC SUCTION APPARATUS (20 LPM)
A high-capacity suction machine for general surgical use. The 7A-23B features an oil-free, maintenance-free suction pump with 20 LPM capacity. Maximum negative pressure can be conveniently controlled from the regulator on the front panel. The durable, aesthetically designed body features a storage compartment at the back and is made from powder-coated metal and plastic. It comes with 2 glass jars, a foot-switch, a tubing kit and spare bacterial filters.
Technical Specifications:
Input Power : AC 220 V @ 50 Hz, 180 VA
Pumping Capacity : 20 LPM
Maximum Negative Pressure : 90 kPa
Operating Noise : < 65 dB
Jar Capacity : 2.5 L X 2
7A-23A ELECTRIC SUCTION APPARATUS (20 LPM)
ABS CABINET
A high-capacity, compact suction machine for general surgical use. The 7A-23A features an oil-free, maintenance-free suction pump with 20 LPM capacity. Maximum negative pressure can be conveniently controlled from the regulator on the front panel. The durable, all-ABS aesthetically designed body features a folding handle. It comes with 2 large 2 L polycarbonate jars, a foot-switch, a tubing kit and spare bacterial filters.
Technical Specifications:
Input Power : AC 220 V @ 50 Hz, 180 VA
Pumping Capacity : 20 LPM
Maximum Negative Pressure : 90 kPa
Operating Noise : < 60 dB
Jar Capacity : 2.5 L X 2
7A-23D ELECTRIC SUCTION APPARATUS (20 LPM)
A high-capacity, compact suction machine for general surgical use. The 7A-23D features an oil-free, maintenance-free suction pump with 20 LPM capacity. Maximum negative pressure can be conveniently controlled from the regulator on the front panel. The durable, aesthetically designed body features a folding handle and is made from powder-coated metal and plastic. It comes with 2 glass jars, a foot-switch, a tubing kit and spare bacterial filters.
Technical Specifications:
Input Power : AC 220 V @ 50 Hz, 180 VA
Pumping Capacity : 20 LPM
Maximum Negative Pressure : 90 kPa
Operating Noise : < 65 dB
Jar Capacity : 2.5 L X 2

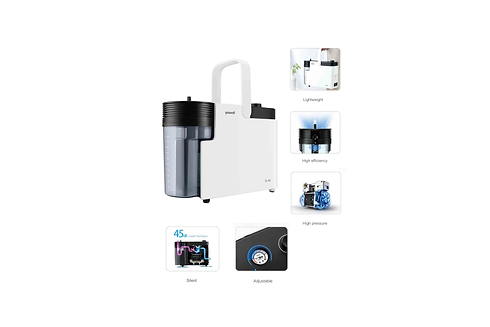

7E-H1 PORTABLE PHLEGM SUCTION UNIT
A compact, electrical suction machine for emergency, home or clinical use. The 7E-H1 can be used for phlegm and mucus removal and also as an aspirator in hospital OTs. It features an all-new design, strong but lightweight ABS body and an oil-free, maintenance-free suction pump with 28 LPM capacity and a detachable power cord. Maximum negative pressure can be conveniently controlled from the regulator on the front panel. It comes with a 1000 mL polycarbonate jar with advanced over-flow protection, tubing kit and additional bacterial filters.
Technical Specifications:
Input Power : AC 220 V @ 50 Hz, 90 VA
Pumping Capacity : 28 LPM
Maximum Negative Pressure : 80 kPa
Operating Noise : < 50 dB
Jar Capacity : 1000 mL
7E-A PORTABLE PHLEGM SUCTION UNIT
A compact, electrical suction machine for emergency, home or clinical use. The 7E-A can be used for phlegm and mucus removal and also as an aspirator in hospital OTs. It features a strong but lightweight plastic body and an oil-free, maintenance-free suction pump with 16 LPM capacity. Maximum negative pressure can be conveniently controlled from the regulator on the front panel. It comes with a 1000 mL polycarbonate jar with advanced over-flow protection, tubing kit and additional bacterial filters.
Technical Specifications:
Input Power : AC 220 V @ 50 Hz, 90 VA
Pumping Capacity : 16 LPM
Maximum Negative Pressure : 75 kPa
Operating Noise : < 65 dB
Jar Capacity : 1000 mL
7E-B5 PORTABLE PHLEGM SUCTION UNIT
A compact, electrical suction machine for emergency, home or clinical use. The 7E-B5 can be used for phlegm and mucus removal and also as an aspirator in hospital OTs. It features an all-new design, strong but lightweight plastic body and an oil-free, high-pressure, maintenance-free suction pump with 22 LPM capacity, silent operation and a detachable power cord. The unit Maximum negative pressure can be conveniently controlled from the regulator on the front panel. It comes with a 1000 mL polycarbonate jar with advanced over-flow protection, tubing kit and additional bacterial filters.
Technical Specifications:
Input Power : AC 220 V @ 50 Hz, 90 VA
Pumping Capacity : 22 LPM
Maximum Negative Pressure : 75 kPa
Operating Noise : < 45 dB
Jar Capacity : 1000 mL
7E-G1 PORTABLE PHLEGM SUCTION UNIT (AC/DC)
A compact, electrical suction machine with built-in rechargeable lithium battery. The 7E-G1 is suitable for ambulances, emergency, home or clinical use. It can be operated in a vehicle with its 12 V DC input. The built-in battery provides running time up to 60 minutes on a full charge and makes it very convenient for use where electrical outlets are not within easy reach.
The 7E-G1 can be used for phlegm and mucus removal and also as an aspirator in hospital OTs. It features an all-new design, strong but lightweight ABS body and an oil-free, maintenance-free suction pump with 25 LPM capacity and a detachable power cord. Maximum negative pressure can be conveniently controlled from the regulator on the front panel. It comes with a 1000 mL polycarbonate jar with advanced over-flow protection, tubing kit and additional bacterial filters.
Technical Specifications:
Input Power : AC 220 V @ 50 Hz, 90 VA / DC 12 V
Battery: 12 V lithium
Pumping Capacity : 25 LPM
Maximum Negative Pressure : 80 kPa
Operating Noise : < 50 dB
Jar Capacity : 1000 mL
Operating Time: 60 minutes on battery
7B PEDAL SUCTION APPARATUS
This is a non-electrical, foot pedal operated suction machine. Suitable for use in remote locations and in cases of occasional requirement. It features a powder-coated metal frame with carry handle and 1000 mL glass jar.
7B-1 MANUAL SUCTION APPARATUS
Simple hand-operated suction device for mucus and phlegm removal. Small, compact with a 200 mL plastic jar. Can be operated with one hand. The device comes with a zipper pouch for travel.
